5-Axis CNC Machined Parts Manufacturer, Precision Manufacturing
As a top China-based manufacturer of ultra-precision 5-axis machined parts, ZH Precision offers comprehensive engineering expertise for mission-critical applications. We handle full-process production from material certification and precision 5-axis milling to advanced post-processing including heat treatment, stress relief, precision assembly and dynamic balancing. All parts are validated via 3D inspection and full-dimension measurement, ensuring reliable quality and full compliance for global clients.

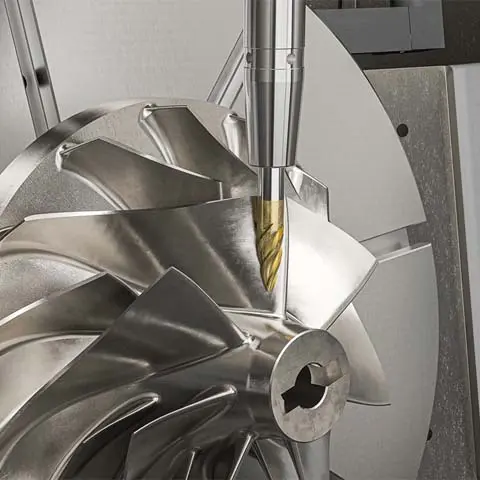

5-Axis CNC Machining with ZH Precision
We specialize in high-precision 5-axis CNC machining for mission-critical applications, including turbine blowers, turbochargers, fluid control systems, lightweight helicopter components, performance automotive, aerospace structural parts, medical devices, and semiconductor equipment.
Supporting zero-MOQ prototyping and small-batch production from solid billet materials, we also offer casting blank machining to deliver optimized, scalable cost solutions for long-term programs and high-volume production. All parts are validated through in-house X-probe inspection to ensure stringent dimensional accuracy and quality compliance.
5-Axis CNC Machining Tolerances
We specialize in ultra-precision 5-axis CNC machining, delivering components with tight tolerances and exceptional dimensional stability. Our standard tolerances meet ISO 2768-m for metals, ensuring complex geometries and intricate features are machined with consistent accuracy.
| Title | Description |
|---|---|
| Maximum Part Size | 4000 × 1500 × 600 mm |
| Minimum Part Size | 5 × 5 × 5 mm |
| General Tolerances | Within ±0.01~0.1 mm |
| Lead Time | Standard operations: 4–7 days; complex projects: up to 3 weeks |
| Global Shipping | Delivery to North America and Europe in 3–10 days |
5-Axis CNC Machining Parts Control
ZH Precision leverages 5-axis CNC machining to perform multi-face machining in a single setup, minimizing clamping errors and ensuring tight dimensional tolerances. Our process control focuses on surface contour, straightness, coaxiality, total runout, positional accuracy, and dynamic balancing. By carefully managing internal stresses, material hardness, and surface treatments, we ensure every part achieves consistent precision, mechanical performance, and readiness for demanding industrial, aerospace, automotive, and medical applications.

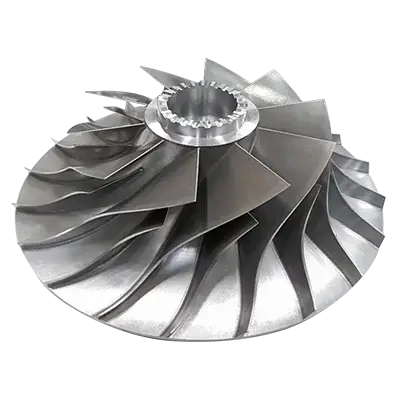

Aluminum Impeller 5-Axis Machining
Control Focus:
Strict control is maintained over outer contours, shaft centerline runout, and assembly fit, with high requirements for dynamic balancing and centrifugal force performance. This ensures bearing life, smooth operation, minimal noise, and optimal rotational performance.
Process Technology:
CNC turning and 5-axis milling are combined to produce high-precision aluminum impellers. Blanks are turned with finishing allowances, then 5-axis milled to achieve tight roundness and accurate blade geometry. All machining is performed using a single coordinate system for the shaft and outer surfaces, ensuring consistent accuracy, reduced stress, and stable aerodynamic performance.

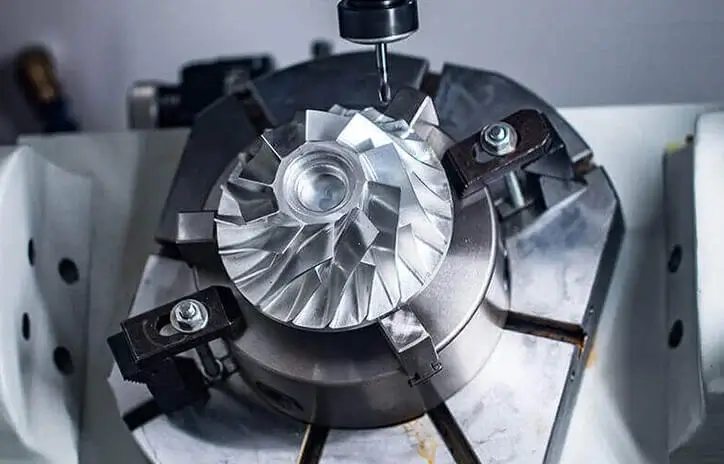

High-Temperature Alloy Impeller 5-Axis CNC Machining
Control Focus:
ZH Precision specializes in 5-axis CNC machining of low thermal expansion and high-performance alloys such as Invar, which are difficult to machine due to low thermal conductivity, work hardening, and deformation risks. Strict control is maintained over shaft runout, blade geometry, and critical dimensions, using wear-resistant coated tools and controlled cutting parameters to reduce heat and maintain stability. Stress relief and precision grinding are applied where required to ensure structural integrity and reliable performance.
Process Technology:
Impellers are machined from CNC-turned blanks and finished using 5-axis milling. For higher-volume production, casting blanks are recommended to improve material efficiency, roughing stability, and tool life. This process ensures tight tolerances, smooth surface quality, and consistent performance for high-performance alloy impellers used in aerospace, energy, and industrial applications.
Need Complex Parts Machined with 5-Axis Precision?
Upload your 3D models or 2D drawings to receive a fast quote, lead time, and expert engineering support. All files are handled securely and confidentially.
5-Axis CNC Machining Materials
We offer a wide range of production-grade metals, including aluminum, copper, brass, bronze, steel, stainless steel, magnesium, and titanium, all tested for consistent quality.
You can review our 5-axis CNC machining material list, or contact us if you need help selecting the right material for your project.
Aluminum Alloys
Aluminum 2024
Aluminum 5052
Aluminum 5083
Aluminum 6063
Aluminum 6082
Aluminum 7075, 7075-T6
Aluminum ADC12 (A380)
Stainless steel
Copper
Titanium
Mild steel
Superalloys
Brass
Alloy steel
5-Axis CNC Machined Parts Surface Finishing Options
We offer complete surface finishing solutions for 5-axis CNC machined parts, including anodizing, electroplating, sandblasting, polishing, passivation, blackening, and QBQ protection. All processes are professionally tested for thickness, hardness, color, corrosion resistance, and adhesion, ensuring durable, high-quality parts with enhanced performance and appearance.
As Machined
As machined finish leaves the surface straight from the CNC machine, providing a cost-effective option with tool marks.
Anodizing
Enhances corrosion resistance and surface hardness while adding color for improved durability and appearance.
Polishing
Polishing achieves a high gloss finish, reducing surface roughness and enhancing the aesthetic appeal of metals.
Sand Blasting
Sand blasting uses pressurized sand or other media to clean and texture the surface, creating a uniform, matte finish.
Tumbling
Tumbling smooths and polishes small parts by friction and abrasion in a barrel, offering a consistent but slightly textured finish.
Electropolish
Electropolish is a chemical process that smooths and brightens surfaces while improving corrosion resistance.
Alodine
Alodine coating provides corrosion protection and improves paint adhesion, mainly used on aluminum surfaces.
Electroplating
Electroplating bonds a thin metal layer onto parts, improving wear resistance, corrosion resistance, and surface conductivity.
Why Do Engineers Choose ZH Precision?
ZH Precision provides professional custom 5-axis CNC machining with advanced equipment, expert engineering and strict quality control. We manufacture complex, high-tolerance components to strict standards, with full support from design optimization to final inspection, ensuring reliable performance and on-time delivery.
High Quality Parts
Experience unparalleled precision in every 5-axis part. Our advanced machining achieves tight tolerances to ±0.01mm, ensuring consistent quality for complex critical components.
Fast Lead Time
Accelerate your manufacturing cycle. Dedicated 5-axis machining centers and streamlined production ensure fast turnaround for complex geometries and urgent projects.
Engineering Support
Navigate your 5-axis CNC projects with confidence. Our experienced engineers provide DFM analysis and expert guidance to optimize designs and ensure machining success.

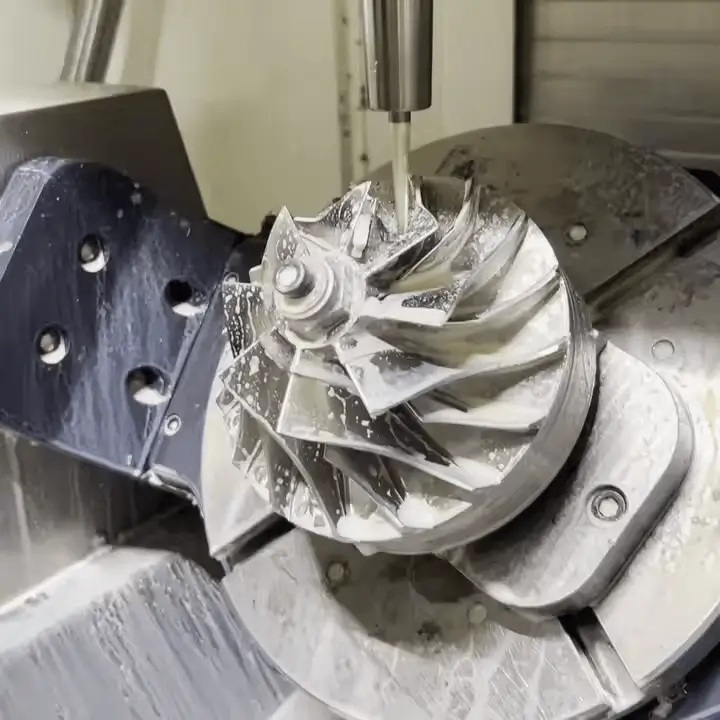

What is 5-Axis CNC machining?
5-axis CNC machining combines three linear axes (X, Y, Z) with two rotary axes (A/B or C), allowing the tool or workpiece to move in five directions simultaneously. This advanced configuration enables the machining of complex geometries in a single setup, greatly improving accuracy and efficiency.
By continuously tilting and rotating the part, 5-axis machining minimizes repositioning errors and ensures optimal tool angles for smooth 3D surfaces — ideal for manufacturing impellers, turbine blades, medical implants, and aerospace components.
The result is superior surface finish (up to Ra 0.1 μm), tight tolerances, and shorter lead times, making it the preferred solution for multi-sided, precision-critical parts.

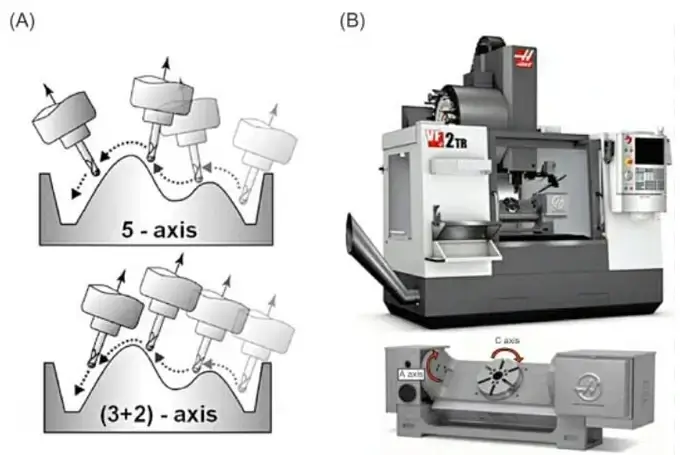

Difference Between Simultaneous 5-Axis and 3+2-Axis CNC Machining
Motion Principle：
5-Axis Machining:
All five axes (X, Y, Z plus two rotary axes) move simultaneously and continuously, allowing real-time multi-directional toolpath control. The cutting tool can approach the workpiece from any orientation, making it ideal for machining complex free-form surfaces such as turbine blades, impellers, and medical implants.
3+2-Axis Machining:
Also known as positional 5-axis machining, it uses three linear axes for cutting while the two rotary axes lock the workpiece at fixed angles (e.g., a 30° tilt) before machining begins. During cutting, the rotary axes remain stationary, providing excellent accuracy and rigidity for multi-face machining with fewer setups.
When to Use 5-Axis CNC Machining?
1.Complex Geometry: Ideal for parts with intricate shapes and profiles that cannot be easily achieved with conventional 3-axis or 4-axis machining.
2.High Precision: Perfect for components requiring extremely tight tolerances and consistent dimensional accuracy.
3.Multi-Axis Movement: Suitable for designs with deep undercuts, complex angles, curved surfaces, and multi-sided features.
4.Diverse Materials: Capable of machining a wide range of engineering materials, from aluminum and stainless steel to high-performance alloys.
5.Time Efficiency: Reduces setup times and machining cycles, enabling faster production while maintaining superior part quality.
6.Reduced Manual Labor: Minimizes manual repositioning and human error, ensuring higher process stability and repeatability.
7.Specialized Industries: Preferred for aerospace, medical, automotive, and high-tech industries that demand complex, high-precision critical components.
Advantages of 5-Axis CNC Machining
1. Complex Geometries – Precisely machine intricate shapes and free-form surfaces from any angle, ideal for aerospace components, automotive parts, and medical implants, reducing multiple setups and simplifying production.
2. Enhanced Accuracy – Minimizes repositioning errors to achieve tight tolerances, ensuring dimensional stability for high-precision industrial, aerospace, and medical applications.
3. Superior Surface Finish – Optimized tool orientation maintains ideal cutting angles, delivering smooth finishes (Ra ≤0.8μm) and reducing secondary finishing for precision automotive, aerospace, and electronic components.
4. Optimized Tool Use – Shorter cutting tools minimize deflection and vibration, producing precise cuts and extending tool life, critical for high-performance metals like titanium, aluminum alloys, and superalloys.
5. Increased Productivity – Combines multiple machining operations into a single setup, reducing lead times and boosting throughput for low- to high-volume production across industrial, automotive, and medical sectors.
6. Material Efficiency – Advanced toolpaths and precise control reduce material waste, essential when working with high-value metals for aerospace, automotive, or energy industry parts.
Frequently Asked Questions
A：We prefer 3D CAD files such as STEP or IGES for 5-axis CNC machining, as they allow us to clearly understand part geometry and provide accurate quotation and manufacturability evaluation. STL files are also accepted for reference. If available, 2D drawings with key dimensions, tolerances, and material specifications are helpful for more precise production assessment.
A：We typically provide 5-axis CNC machining quotes within 12–24 hours after reviewing complete 3D files, drawings, material specifications, and order quantity. For complex parts, engineering feedback may be provided before final quotation.
A：The cost of 5-axis CNC machining depends on part complexity, material type, tolerance requirements, and production quantity. Each project is evaluated individually to provide competitive pricing for prototypes and production runs.
A：Yes, we support single prototypes, low-volume production, and large-scale manufacturing. Our processes are designed to ensure smooth transition from prototyping to full production with stable quality at every stage.
A：Yes, we fully support NDAs to protect your designs and intellectual property. Confidentiality is strictly maintained throughout the entire quotation and manufacturing process.
